APC Introduces Smart-UPS Lithium-ion Battery, Short Depth 1500VA, 120V with SmartConnect – SMTL1500RM3UC


Inquire TODAY

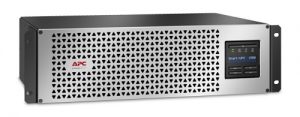

APC Smart-UPS Li-Ion, Short Depth 1500VA, 120V with SmartConnect
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes : CD with software , Documentation CD , Installation guide , Rack Mounting support rails , Smart UPS signalling RS-232 cable , USB cable

Features & Benefits

-Avoids costly power problems by keeping your IT equipment and data safe and available
-Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
-Save time with easy and convenient remote accessibility
-Peace of mind that comes with full equipment compatibility and reliability of a leader
-Smarter productivity with ability to tailor to your specific application needs

-Cold-start capable:Provides temporary battery power when the utility power is out.
-Energy meter: Provides actual kilowatt hours of usage for energy conscious users.
-Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
-High online efficiency: Reduces utlility costs, generates less heat.
-Predictive replace battery date: Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
-Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
-Single switched outlet group: Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
-SmartSlot: Customize UPS capabilities with management cards.
-Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.



Output power capacity: 1.35 KWatts / 1.44 kVA
Max Configurable Power (Watts): 1.35 KWatts / 1.5 kVA
Nominal Output Voltage: 120V
Output Voltage Distortion: Less than 5%
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Topology: Line Interactive
Waveform type: Sine wave
Output Connections: (6) NEMA 5-15R (Battery Backup)
Transfer Time: 6ms typical : 10ms maximum


Nominal Input Voltage: 120V
Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: NEMA 5-15P
Cord Length: 8ft ( 2.44meters )
Input voltage range for main operations: 82 – 144V
Input voltage adjustable range for mains operation: 75 – 154V
Number of Power Cords: 1
Other Input Voltages: 110, 127

Batteries & Runtime

Battery type: Li-ion
Typical recharge time: 6hour(s)
Expected Battery Life (years): 5 – 10

Communications & Management
Control panel: Multi-function LCD status and control console
Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Available SmartSlot™ Interface Quantity: 1

Surge Protection and Filtering

Surge energy rating: 680Joules
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449


Maximum Height: 5.14inches ( 131mm , 13.1CM )
Maximum Width: 17.25inches ( 438mm , 43.8CM )
Maximum Depth: 11.89inches ( 302mm , 30.2CM )
Rack Height: 3U
